GOATS Interface overview

GOATS runs on the web-browser locally, i.e., on your localhost (IP address 127.0.0.1) at the default port number 8000. Users can choose a different port number, if desired (see GOATS Command Line Interface).

GOATS top navigation bar

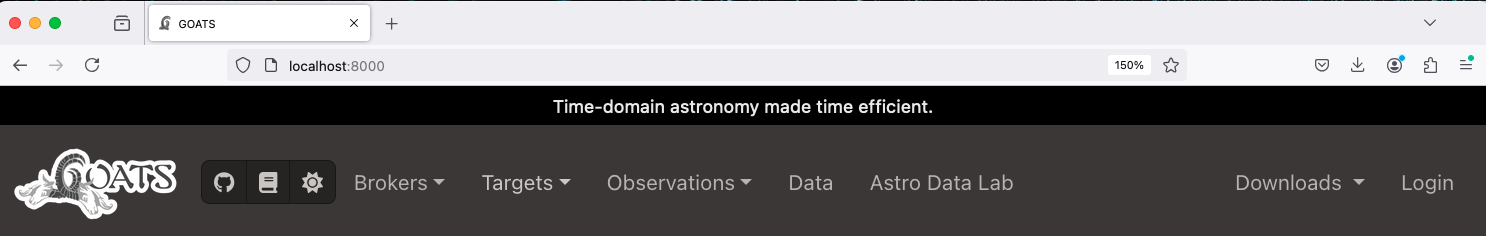

Fig. 3 Navigation bar on GOATS landing page. Click the image to see an enlarged version.

The various buttons at the top navigation bar are described below.

  1. The second icon from left, i.e., the GitHub icon links to the GitHub repository of GOATS where our codebase resides, while the third icon links to this documentation website and the fourth icon can be used to toggle between light and dark mode.

  2. The Brokers drop-down menu button can be used to access one of the brokers: ANTARES, ALeRCE, Gaia, and Scout to select time-domain targets, as well as queries for these brokers saved by the user.

  3. The Targets drop-down menu button can be used to navigate to the list of saved targets, including target groupings applied by the user.

  4. The Observations drop-down menu button can be used to access the observations for specific targets, observation groupings applied by the user, saved observation templates, as well as real-time status of the Gemini telescopes.

  5. The Data button links to a page displaying all the saved data products on GOATS.

  6. The Astro Data Lab button links to NOIRLab’s Astro Data Lab science platform.

  7. The Downloads drop-down menu button can be used to monitor the progress of data downloads.

  8. Finally, the Login button can be used to log into one’s own GOATS interface using the username and password created during GOATS installation (see Installation).

Managing Credential

GOATS provides the option for users to securely store their login credentials for services such as the Gemini Observatory Archive, Astro Data Lab, etc. This needs to be done only once via the Users page accessible from the drop-down menu under the user name on GOATS. With this action, users will then be able to access their proprietary Gemini data, transfer data to their Astro Data Lab account, etc.

The video below shows a walk-through of the buttons on the navigation bar as well as managing user credentials.
